Deluxe-3 Rotary Chain System |
Deluxe-3 Rotary Chain Headrails |
Deluxe-3 Rotary Chain Headrail System 150cm wide

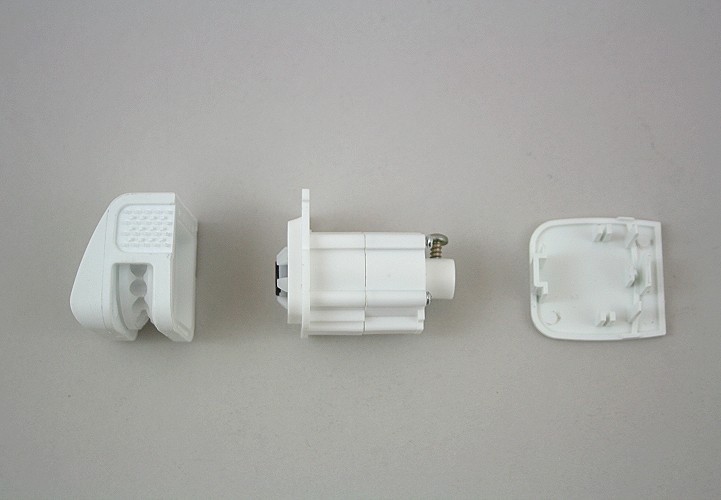

Shown here withoptional 1:4 ratio heavy duty chain drive with child safety breakaway and chrome bead chain.
OUT OF STOCK

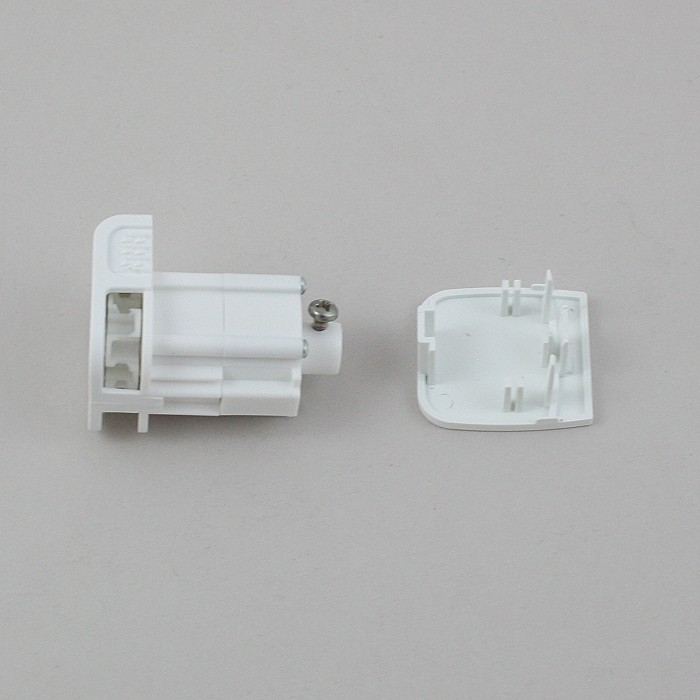

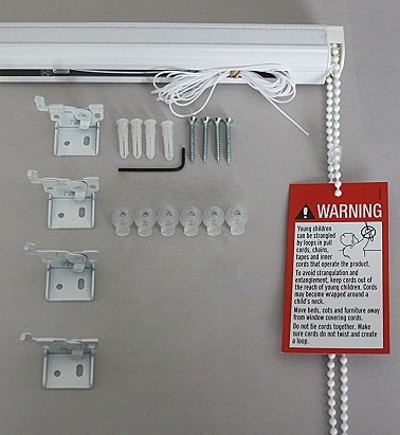

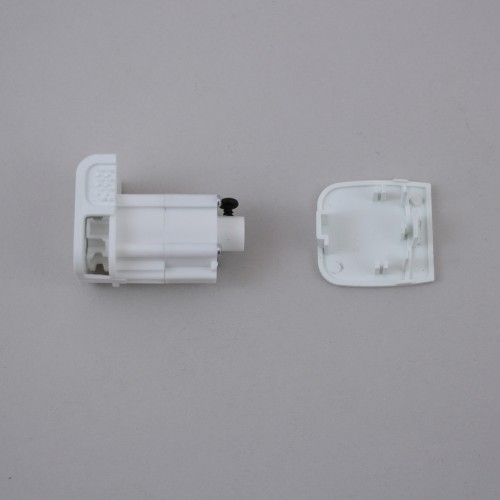

Including 5 cord drops, 3 universal face-fix/top-fix bracketsThe standard headrail is supplied with a 1:1 ratio chain drive suitable for blind weights of up to 3.5kg and a 350cm (175cm drop) white nylon chain with a child safety breakaway device which also allows you to shorten the chain ring if necessary. The chain drive is supplied fitted on the right of the headrail but can easily be moved to the left if required. The bottom of the chain must be no lower than 60cm from the floor.Dimensions:Profile Height: 38mmProfile Depth: 36mmBracket projection: 41mm to front of headrail.Optional Brass bead chains are available in brass, chrome, nickel, gold, antique silver, antique brass and black nickel finish.After adding the headrail to basket click OPTION 1 from the Brass Bead Chain Options below.
(4 or less)
(5 or more)
For heavier blind weights up to 7.5kg upgrade the standard 1:1 ratio chain drive to a 1:4 ratio heavy duty chain drive with or without an integrated Child safety breakaway. You MUST use a continuous chain ring with these heavy duty chain drives.
Additional charge £4.48+VAT. Requires a continuous chain ring no lower than 60cm from the floor.After adding the headrail to basket see BRASS BEAD CHAIN OPTIONS below.
Additional charge £2.00+VAT. Requires a continuous chain ring fitted with a chain tensioner screwed to the wall no lower than 150cm from the floor. After adding the headrail to basket see BRASS BEAD CHAIN OPTIONS below.
Additional charge £7.16+VAT
All tape packs are suitable for drops up to 260cm.Includes: Ivory rod tape and S hooks. With instructions.
Additional charge £9.31+VAT
Packs include: 7 fibreglass rods with plastic end caps, flat bottom aluminium bar with plastic end caps and instructions.
We offer a FREE cutting service on this headrail.Simply tick this box and enter the required lengths in mm.
Now, please enter the lengths required in mm.
Your measurements for the headrail length will include the drive and endcap.
If you have added the optional Roman blind rod bar pack you should also enter the required length for the flat bottom bar and fibreglass rods including end caps.
Fibreglass rods are normally 30-50mm less than the headrail to allow for the fabric side turning.
If you do not enter measurements then the items ordered will be supplied un-cut.
Deluxe-3 Rotary Chain Headrail System 90cm wide
Deluxe-3 Rotary Chain Headrail System 120cm wide
White flat aluminium bottom bar. 25mm wide. 2.99 metre lengths

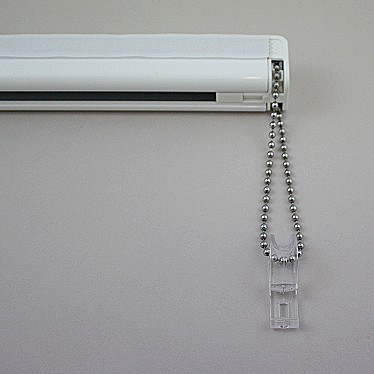

Nickel finish brass bead chain for chain drives
